Marca:	TGFQ
Número do modelo:	EC750D L/EC750E
Quantidade mínima:	1
preço:	2950.00USD
Detalhes da embalagem:	EMBALAGEM DE NNER: Envoltório pelo filme plástico, etiqueta clara para cada artigo. EMBALAGEM EXTERI
Condições de pagamento:	L/c, t/t, d/p, d/a

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE Certificate

Modelos compatíveis:

EC700B/EC700C

Habilidade da fonte:

10 PCS/meses

Destacar:

TRACK DRIVE excavator travel gearbox

EC700C excavator travel motor

VOE14681190 gearbox with warranty

Descrição do produto

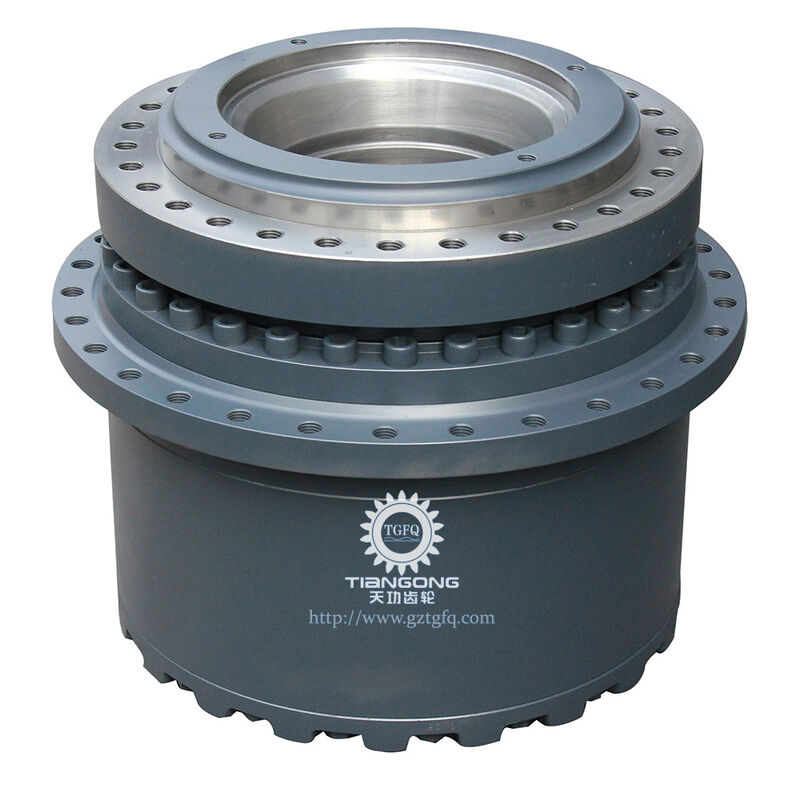

TRACK DRIVE EC700C/EC750D/EC750E VOE14681190 Travel Gearbox

TRACK DRIVE EC750D L VOE14666233/VOE14681190 Travel motor with mounting parts 8296099

Product Overview

TRACK DRIVE EC750D L VOE14666233/VOE14681190 Travel motor with mounting parts 8296099

Safety Features

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

One-way valve design ensures hydraulic oil flows in only one direction
Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications

Compatible Models	EC700B/EC700C
Category	Excavator Travel gearbox
Brand	TGFQ
Part Numbers	VOE14681190
Packing	Wooden case
Delivery Time	1-3 days after payment confirmation
Shipping Methods	By Sea, Air, or Express

Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Swing Brake Operation

The swing brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.

Product Images

Travel Motor Parts Breakdown

Parts List - Assembly 1

#	Part No.	Description	Qty
1	VOE14620646	Seal	1
2	VOE14663731	Gear	1
3	VOE997907	Hex. Socket Screw	32
4	VOE14663733	Planet carrier	1
5	VOE14620655	Gear	1
6	VOE14620656	Planet carrier	1
7	VOE14620662	Planet carrier	1
8	VOE14663735	Gear	1
9	VOE14620704	Gear	1
10	VOE14623915	Cover	1
11	VOE14623917	Ring	2
12	VOE955926	Spring washer	36
13	VOE990709	Hexagon screw	16
14	VOE60110032	Hexagon screw	20
15	VOE983524	O-ring	2
16	VOE14883848	Plug	2
17	VOE14681191	Shim	1
18	VOE14681192	Shim	1
19	VOE14681193	Shim	1
20	VOE14681194	Shim	1
21	VOE14681195	Shim	1
22	VOE13968816	Allen Hd Screw	24
23	VOE14620643	Seal	1
24	VOE14663732	Retainer	1
25		Housing	1
26	VOE14620645	Bearing	2
27		Spindle	1
28	SA9324-21821	Bearing spindle	4

Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
